220v DC stepping motor from China manufacturer - Ningbo Yinzhou Shengzheng Motor Factory

Price:	1.4 USD
Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 24BYJ48-01

Production Capacity: 1000piece/pieces per month

Delivery Date: 19days after placing orders

Shape: Linear

Protect Feature: Enclosed

Function: Driving

Brand Name: jili

rated voltage: 12v

rotation: cw/ccw

Means of Transport: Ocean

Packing: standsrd cartons

Structure: Synchronous Motor

Phase: Others

Speed: Variable Speed

Usage: Household Appliance

insulation grade: A

noise: <40dB(120Hz,No load,10cm...

number of pole: 4

Rise in Temperature: <40K(120Hz)
Noise: <40dB(120Hz,No load,10cm)
Weight: About 40g
rutation: cw/ccw

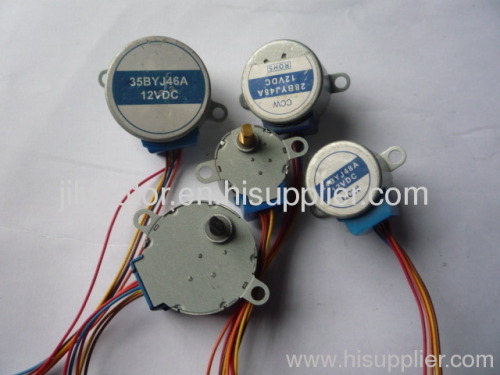

product name:12VDC 4-phase 5-wires 29.4mN.m DC electric stepping motor
model: 24BYJ48-01
rated voltage; 12VDC
4-phase,5-wires
speed variation ratio:1/64
stride angle: 5.625° /64

DC resistance; 200Ω±7%(25)

Idle In-traction Frequency: >600Hz

Idle Out-traction Frequency: >1000HZ

In-traction Torque: >29.4mN.m(120Hz)

Self-positioning Tor: >29.4mN.m

insulated resistance: >10MΩ(500V)

insulated electricity power: 600VAC/1mA/1s

Insulation grade:A

Rise in Temperature: <40K(120Hz)

Noise: <40dB(120Hz,No load,10cm)

Weight: About 40g
rotation: cw/ccw
it is Mainly used in wind guiding board of fission air conditioner in house, wind heating board etc

we are using high-power stepper motor driver chip
A, B, C, D four-phase LED indicates the status of the stepper motor work
Stepper motor with a standard interface, when used directly pluggable.
